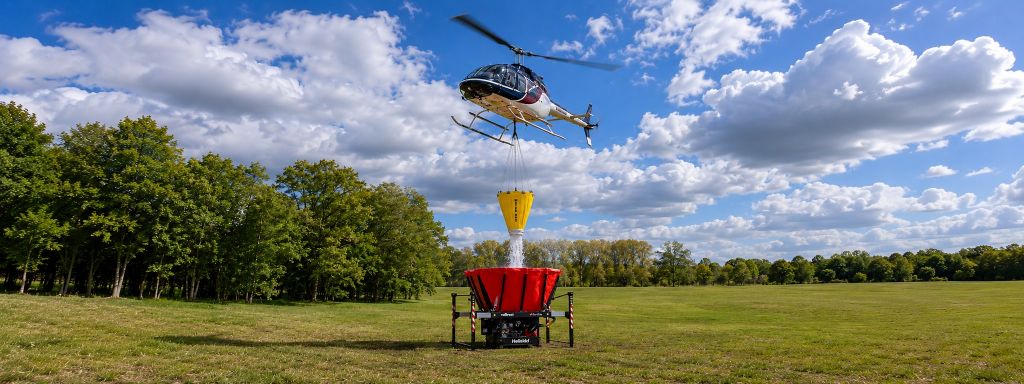

With its small size and low weight, the Heliskid® can be transported by many types of light vehicle, greatly complementing its ability to be heli-transported via long line. Equipped with high-performance features, it can be deployed with 3,000 L and a high-performance pump in one convenient kit.
The Heliskid® tank is unique in that it can be filled using rotor-wing resources, reducing refill time rather than relying on water tenders to make multiple long trips.
TECHNICAL SPECIFICATIONS

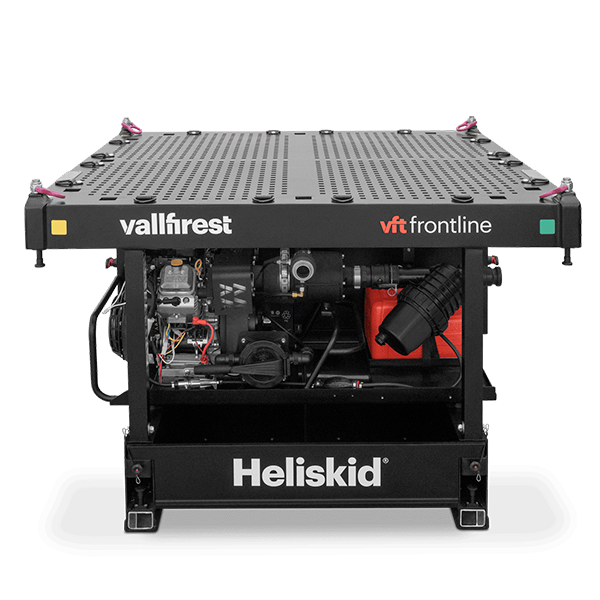

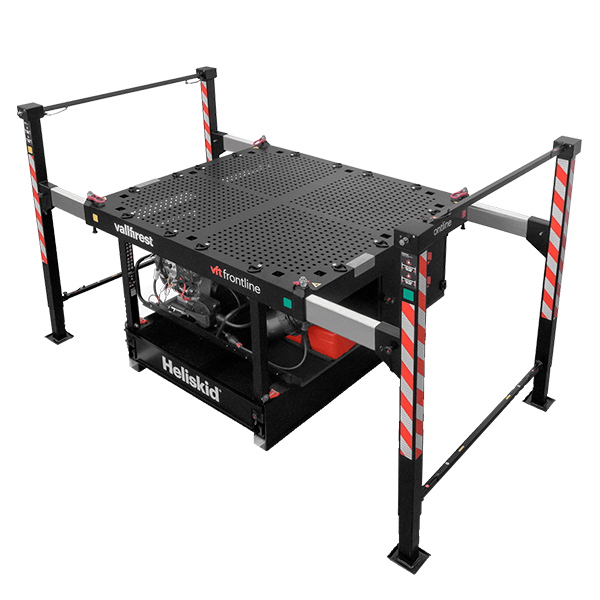

Helitransportable structure

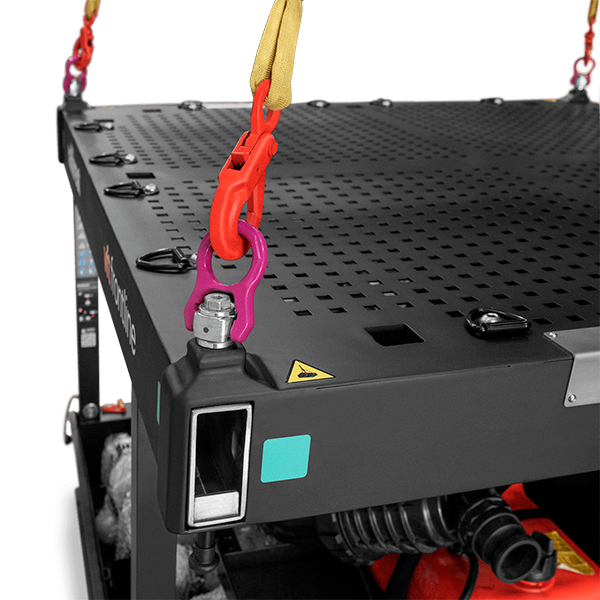

The main structure and structural tank arms are made of aluminium. 4 hoisting points for helitransport. ACP (Automatic-Center-Point) eyebolts compliant with DIN EN 1677-1:2009-03 and DIN EN ISO 12100:2011-03.
Total weight
415 kg without water | 3,415 kg with a full tank | MMA: 750 kg

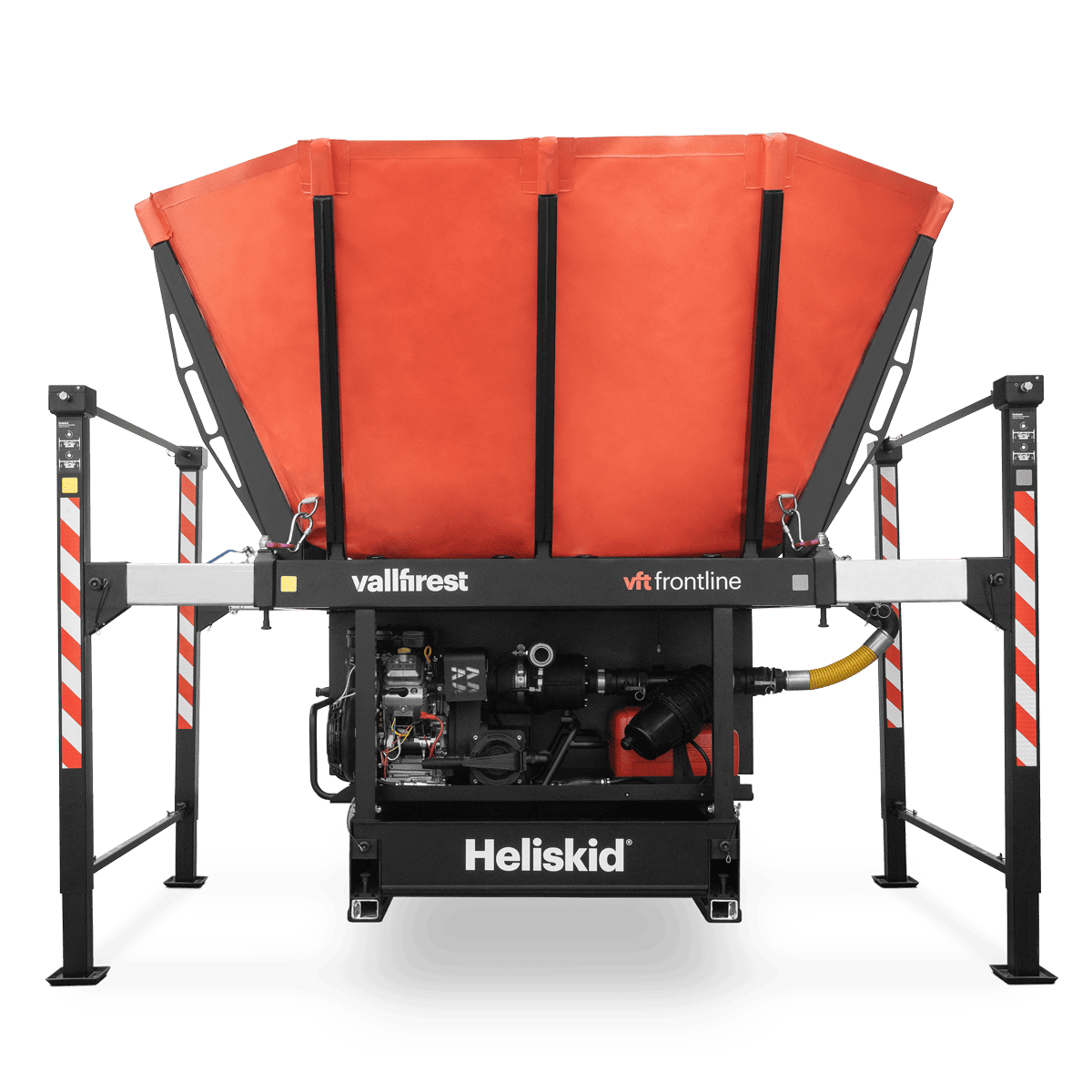

3,000 L canvas tank
Fold-down canvas with a tubular detachable structure for transportation in a cabinet.
Dimensions when open: 210 x 210 x 100 cm | Dimensions when folded: 120 x 60 x 25 cm
Material: 1450 g/m² – thickness 1.2 mm – PES fabric with a PVC finish
Resistance: traction 3000/3000 N/50 mm | tear 250/250 N | temperature -30/+70 °C | Weight: 48.5 lbs (approx. 22 kg) including the carrying case
Cabinet
Drawer with an access door on both sides and key-lock closure. Designed to transport the tank, the structural arms and components for the operation, as well as the suction section, cranks and leg drive system drill holes. Dimensions: 128 x 69 x 50 cm| Capacity: 350 L
Fuel tank
Petrol tank made of HDPE, connected to the fire pump. Equipped with a Mercury quick-connect fuel line. Capacity: 12 L
Removable fire pump
BH4-23 fire pump combining a powerful Briggs & Stratton Vanguard V-twin 23 HP engine with a VFT Speed Increaser and a VFT_4SP 4-phase centrifugal pump. Offers excellent operation at high pressures with a great flow rate, and has the capacity for long-distance hose laying. A quick coupling system allows the pump to be replaced as quickly as possible in the event of a breakdown. Dimensions: Length 83 cm | Width 49.5 cm | Height 48 cm | Weight: 78 kg
